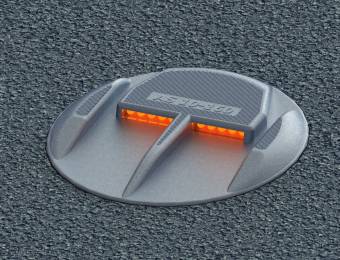

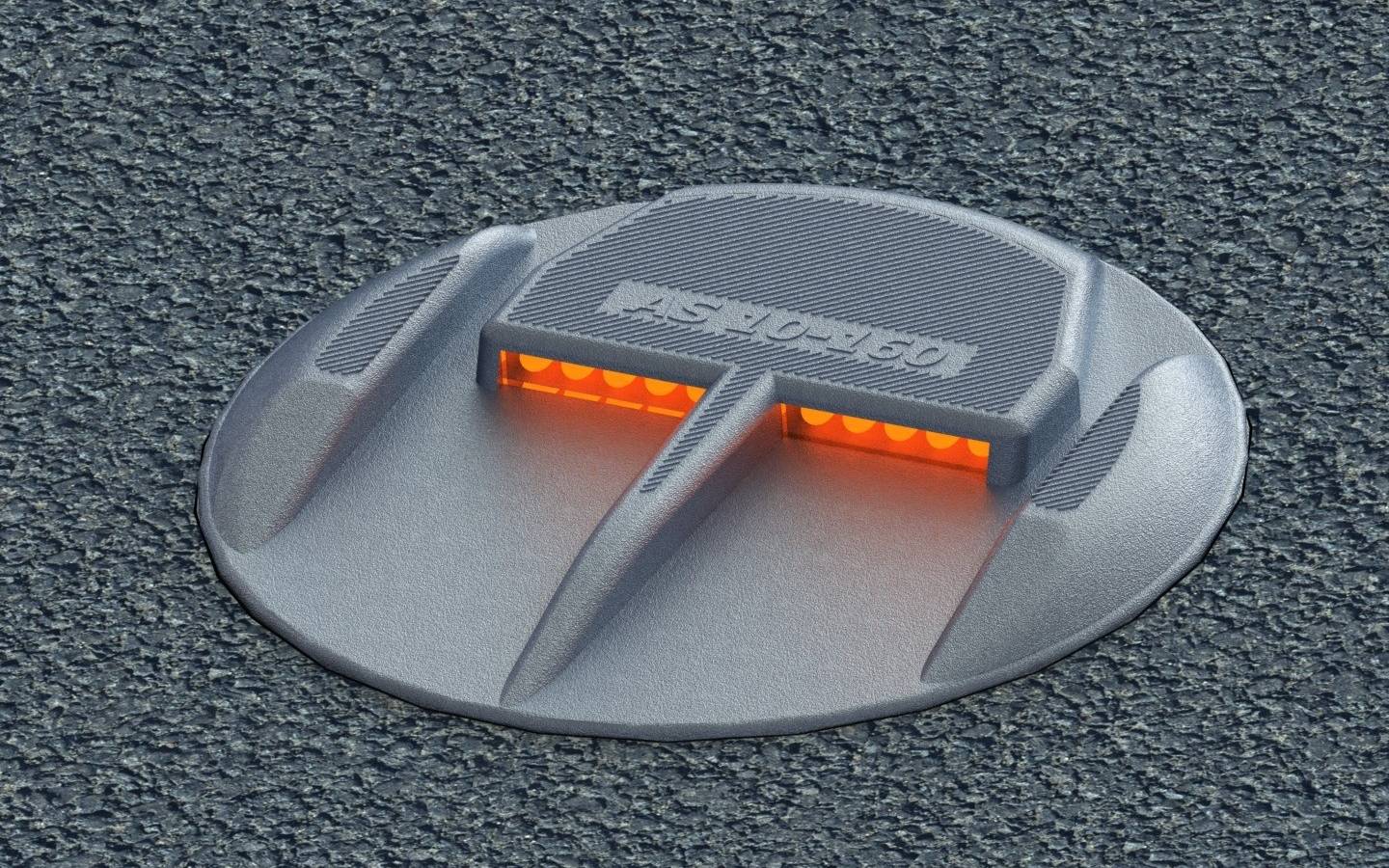

ALUMINUM LIGHTHOUSE CONNECTION TO GRID AS 10-160
TECHNICAL FEATURES
- Suitable for areas with regular heavy vehicle traffic
- High mechanical strength: 120 tons
- Snowplow compatible
- Robust construction, ideal for adverse conditions
- High daytime and nighttime brightness

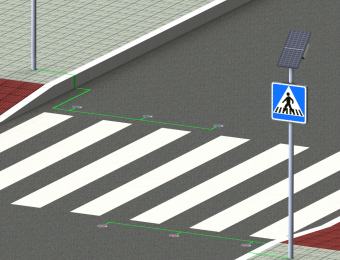

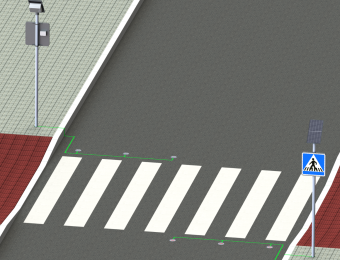

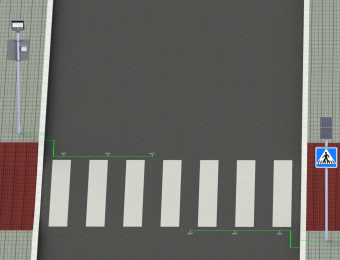

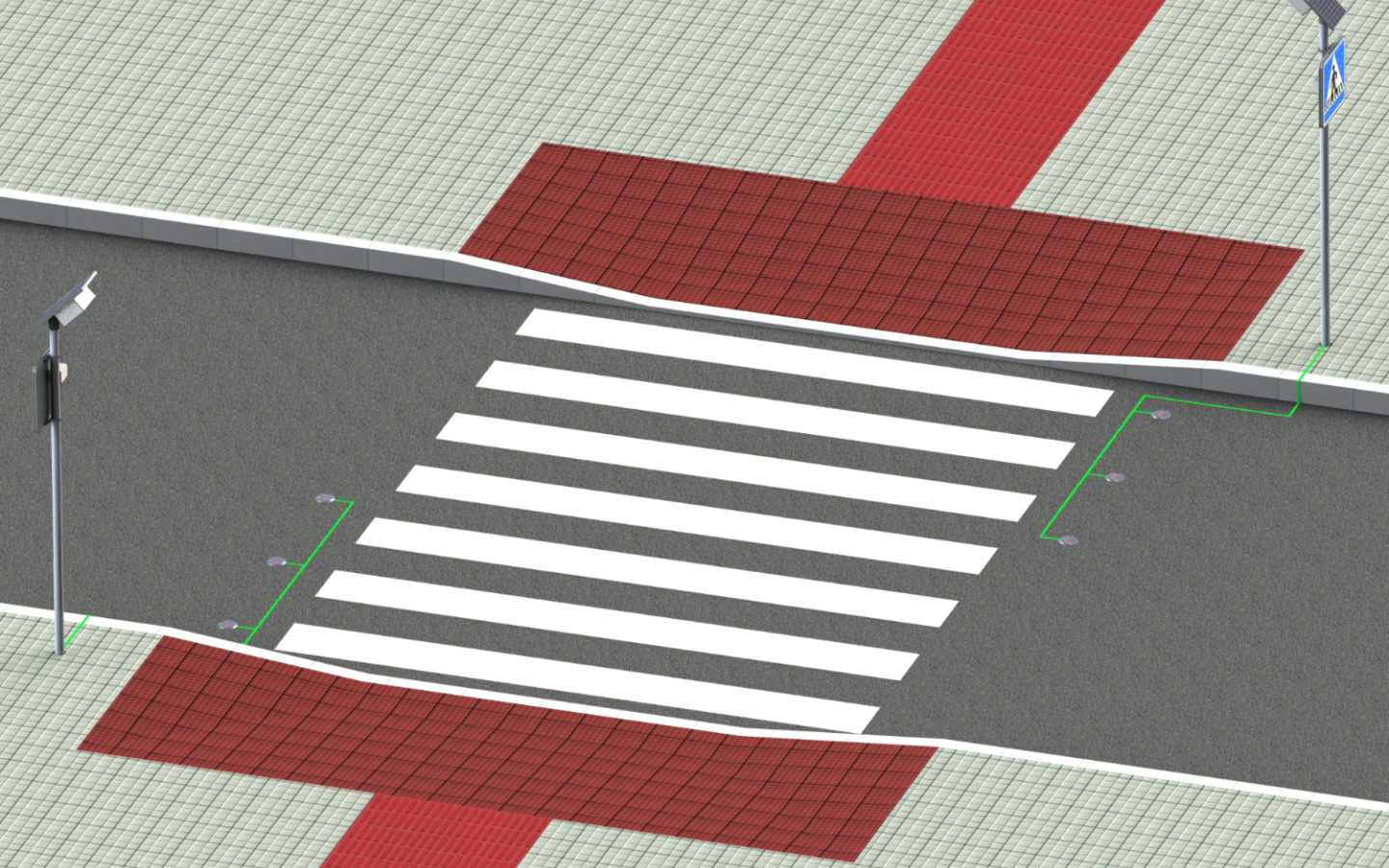

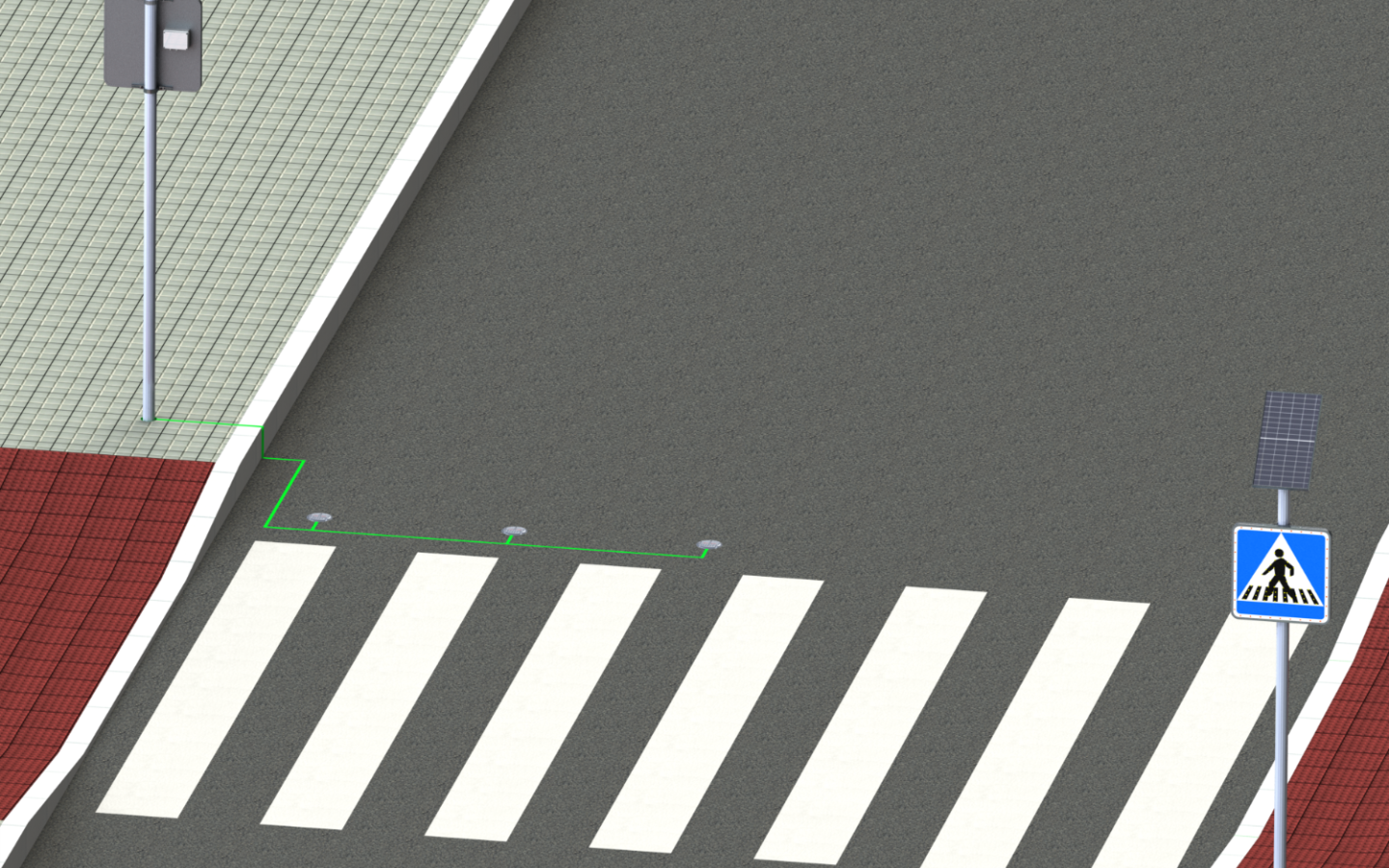

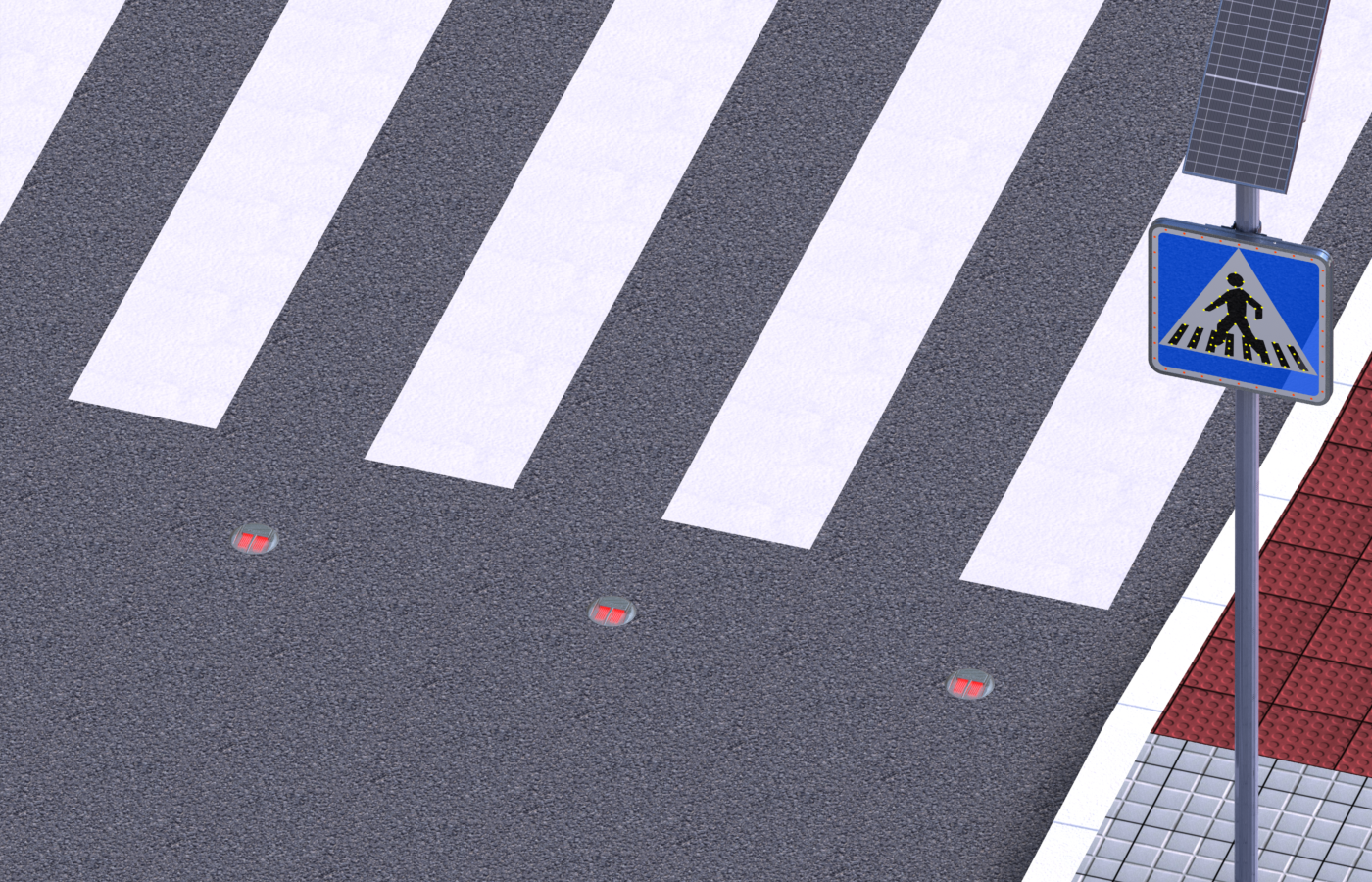

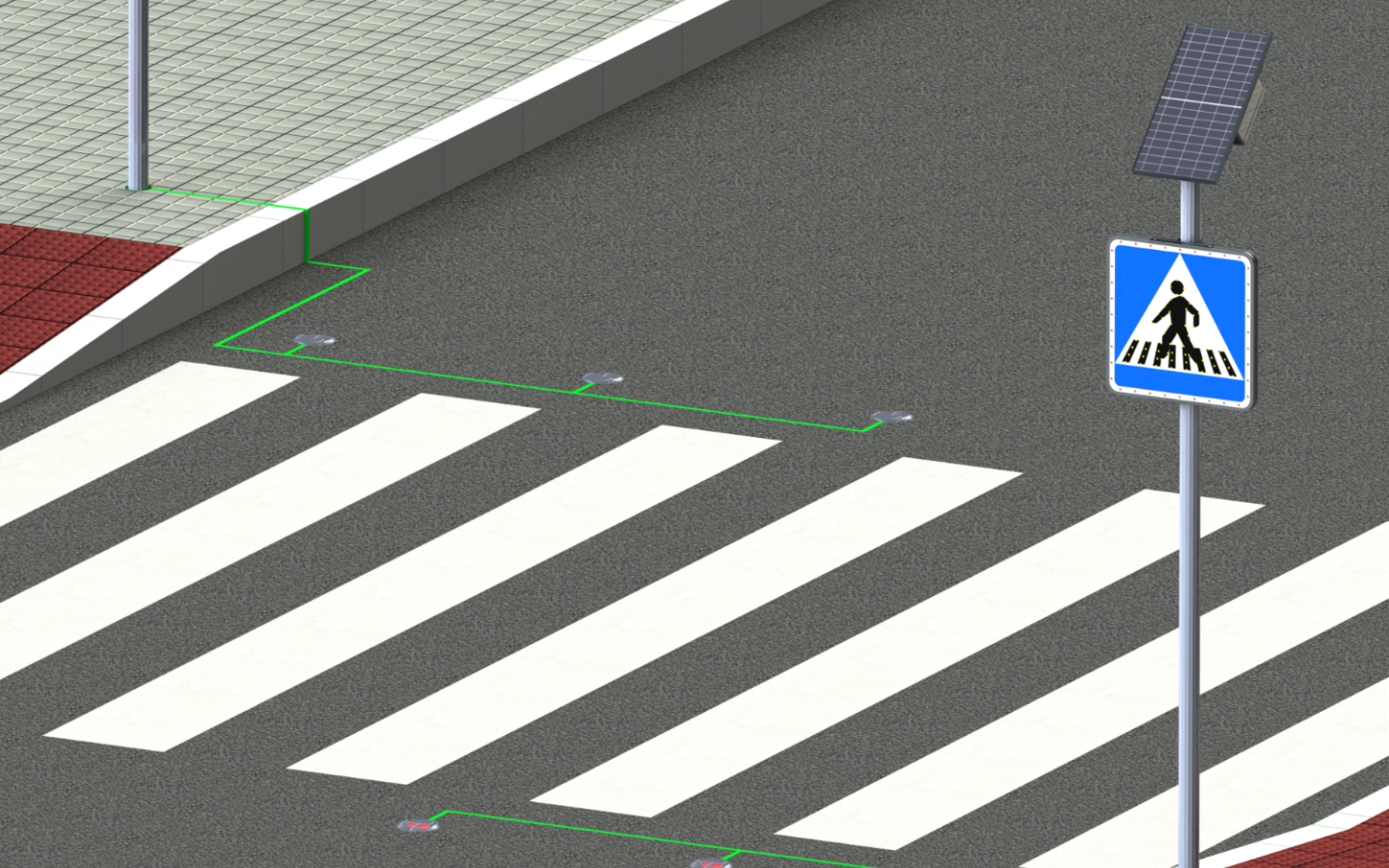

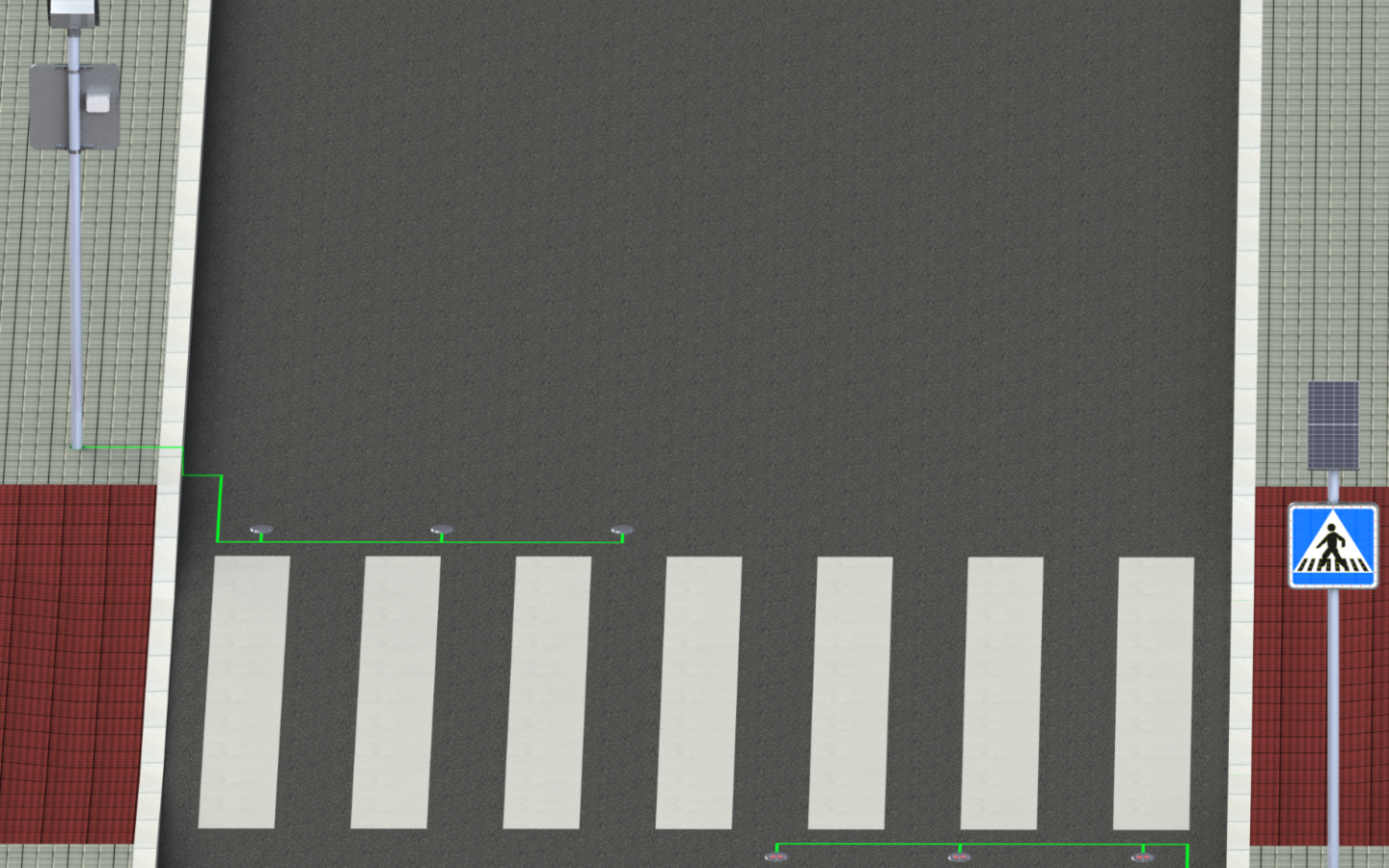

- Wired system that can be powered by electricity or solar power
- Possibility of using different colored LEDs per window
OPERATING MODES
Always on
*Other operating modes, such as flashing or sequential, are available with an external controller
LED CONFIGURATION
Unidirectional
ELECTRICAL FEATURES
Power: 12 V DC or 24 V DC*
Current consumption: 80 mA
Power cable: Brown wire (+) | Blue cable (–)
Operating temperature: -25°C to +85°C
OPTICAL CHARACTERISTICS
Number of LEDs: 8
LED type: 5 mm
LED color: White, Warm white, Red, Amber, Green, Blue
Viewing angle: 15°
MECHANICAL CHARACTERISTICS
Dimensions: Ø160.5 x 100.7 mm
Weight: 3 kg
Material: 100% aluminum
Mechanical strength: 30 tons
Protection rating: IP68 and IK10
