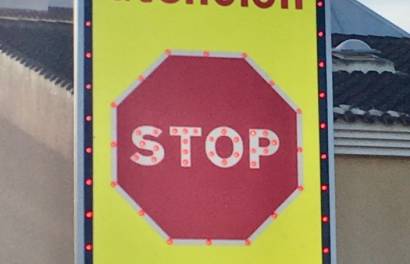

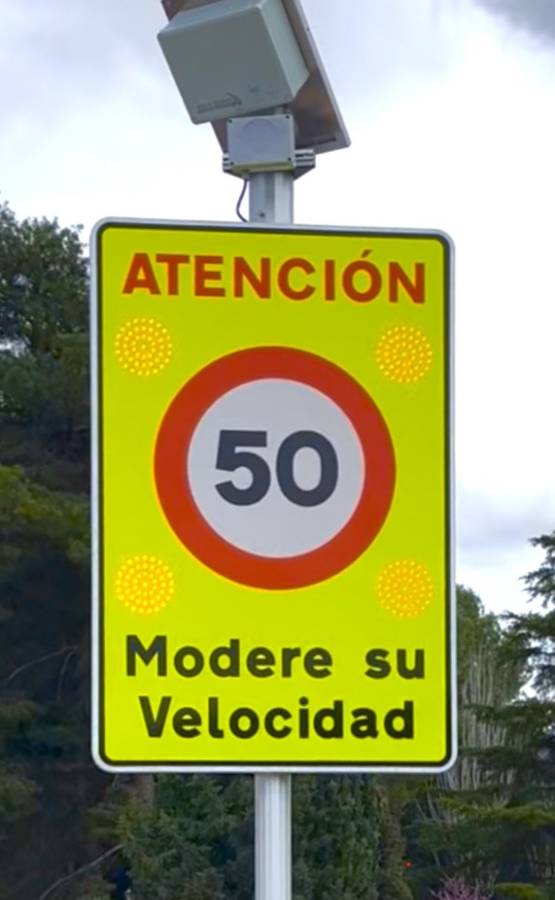

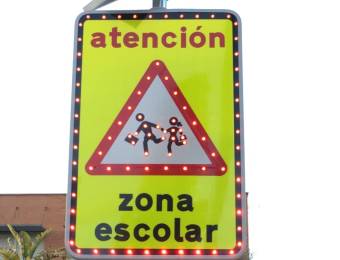

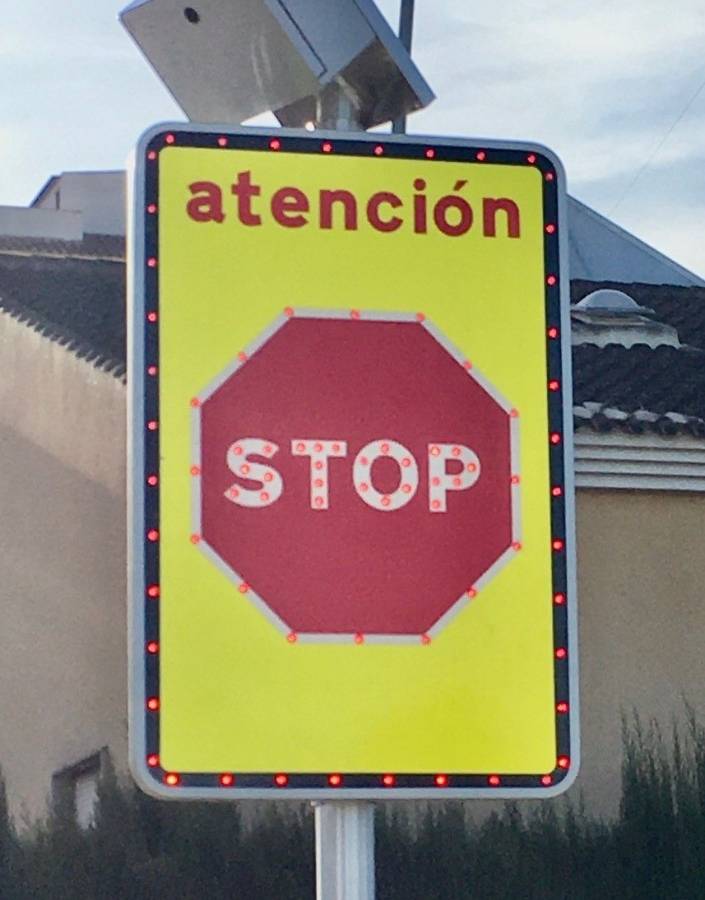

High Visibility Signs Reinforced with 100/150mm LED Lights
DESCRIPTION
On certain occasions, it is necessary to warn the driver of an exceptional circumstance, but only at the moment it occurs. This way, the driver does not receive unnecessary stimuli in the absence of danger. If they continually receive a false alert, the alert loses its exceptional character and is no longer useful.
This is why AKRA-SEÑAL has developed a signal that can be activated from a short distance (up to 500 m) or via an app, from anywhere with GPRS coverage (optional).
TECHNICAL FEATURES
Frame: 37 mm anodized aluminum box with a 2 mm aluminum back and a 3 mm polycarbonate screen.
Labeling: RA3 reflective.
LED: 5 mm ultra-bright, encapsulated LED. Lifespan of up to 100,000 hours. Luminous intensity 15°/30° 5500/21000mcd at 20mA. LEDs manufactured from optical-grade epoxy. High resistance to humidity and high temperatures. Contains UV-A and UV-B inhibitors to reduce the long-term effects of direct sunlight exposure. Available in red, amber, blue, and white. Programmable flashing modes.
Spanish Regulations: Directive 2011/65/EU and Royal Decree 219/2013 on the Restriction of Hazardous Substances, RoHS. UNE-EN 50293 Road traffic signaling systems. Electromagnetic compatibility. EN 12899-1:2007, Fixed vertical traffic signs, CE 0099/CPR/A72/0097.
TYPES

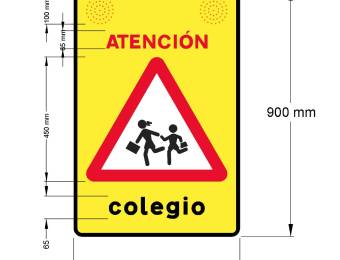

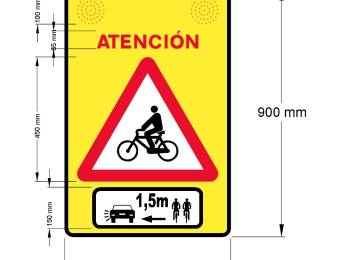

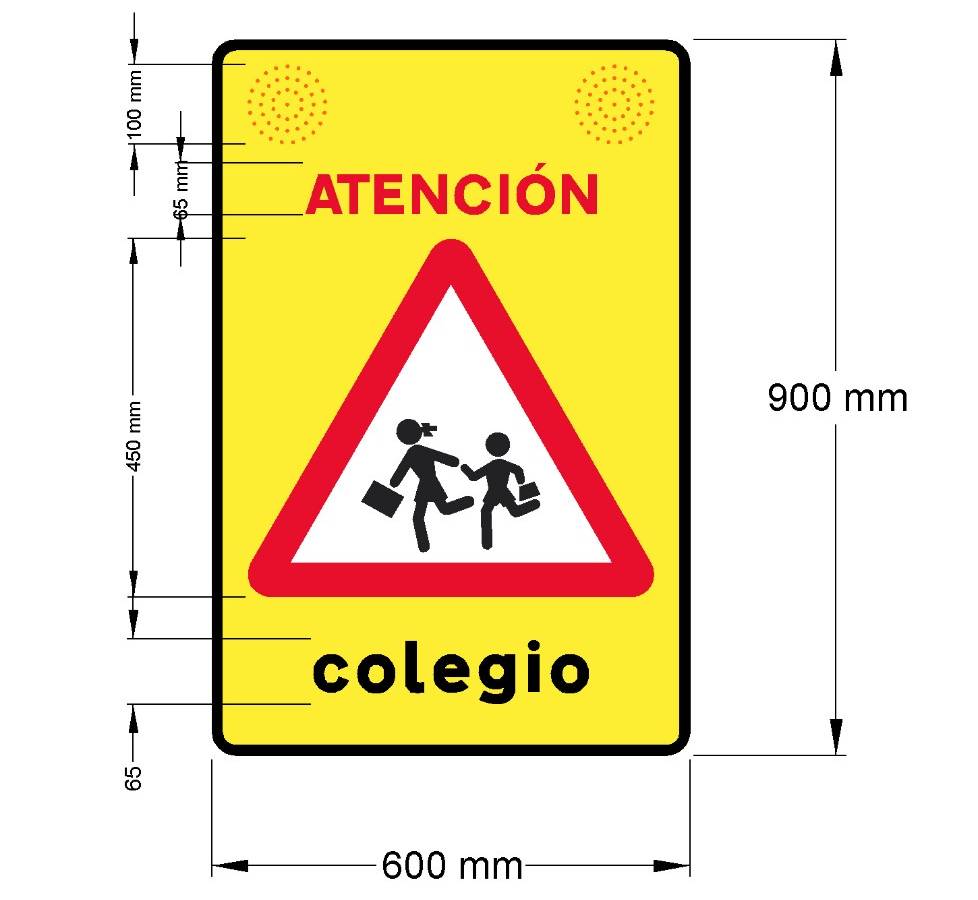

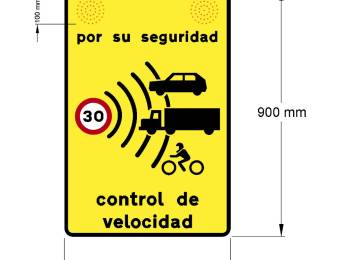

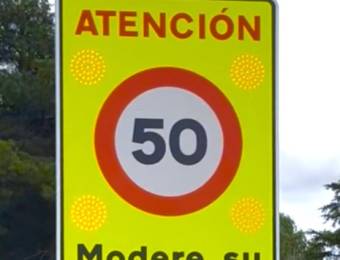

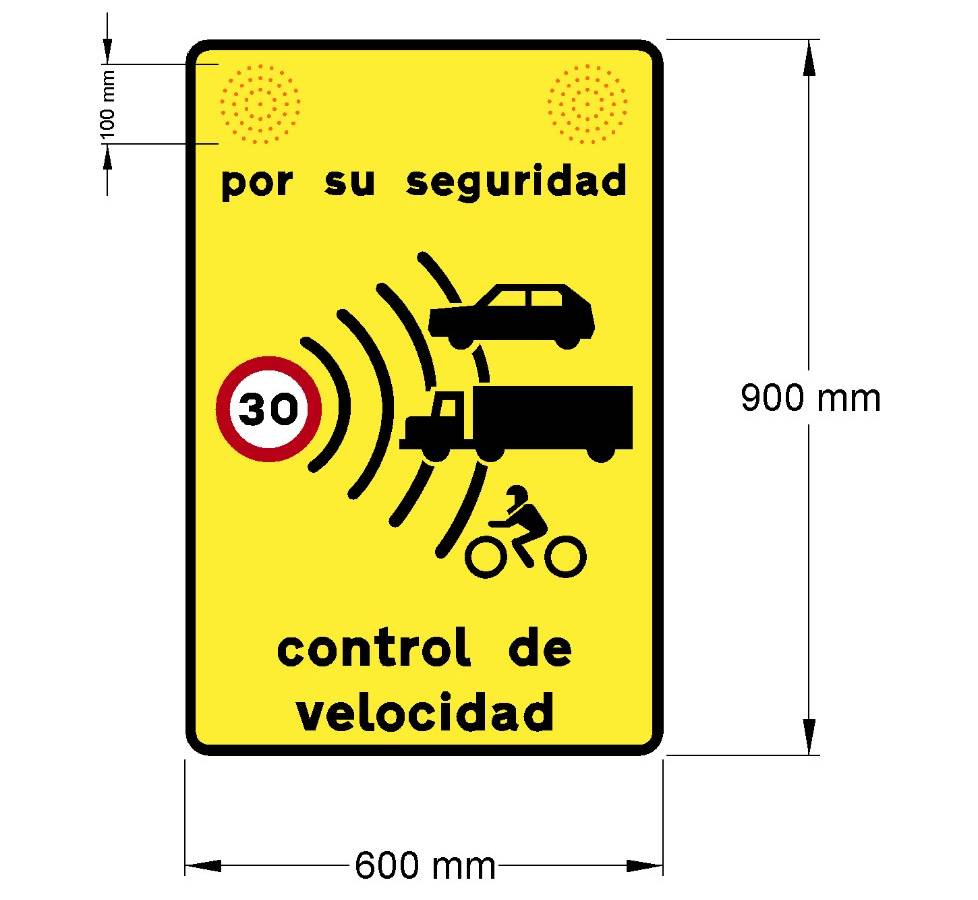

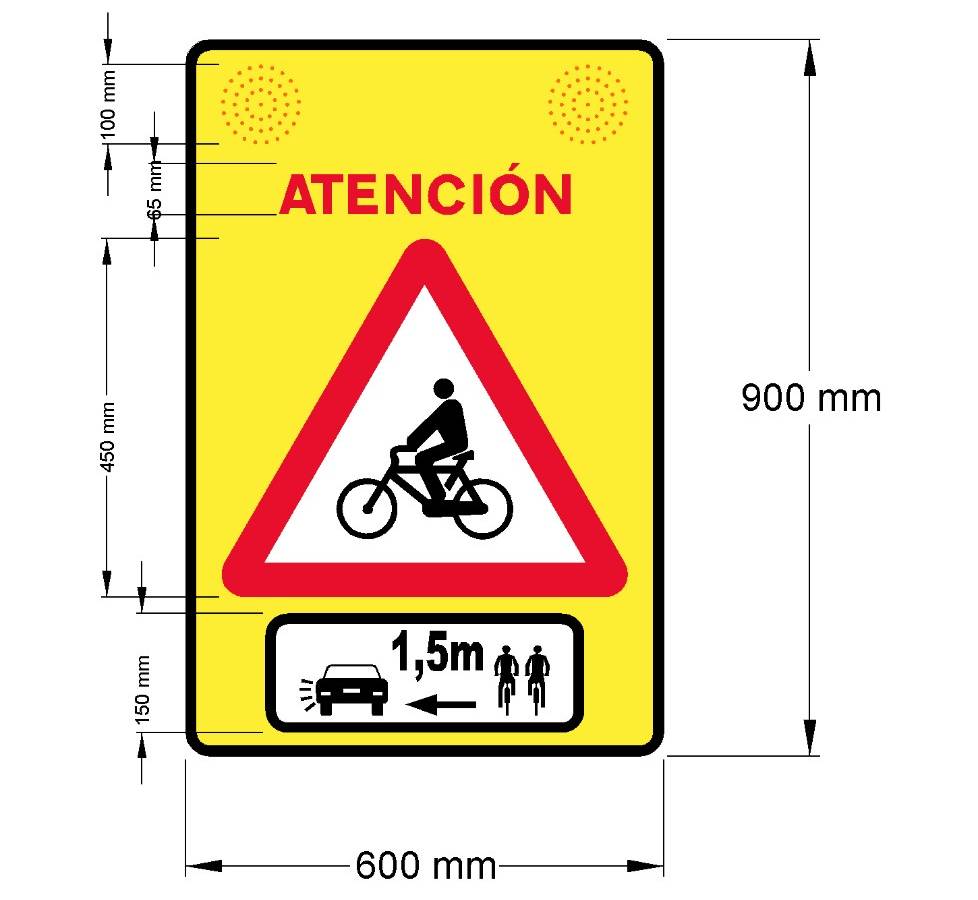

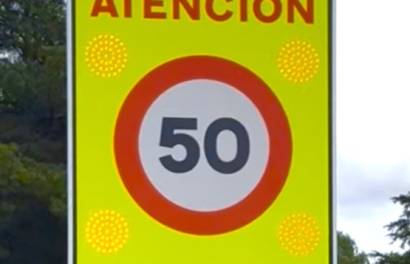

- 90x60 with two 24-LED spotlights, ø10cm
- 90x60 with four 24-LED spotlights, ø10cm

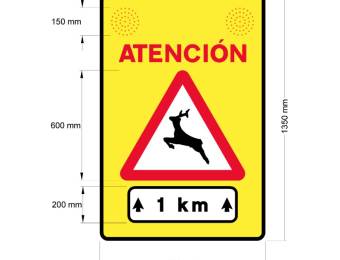

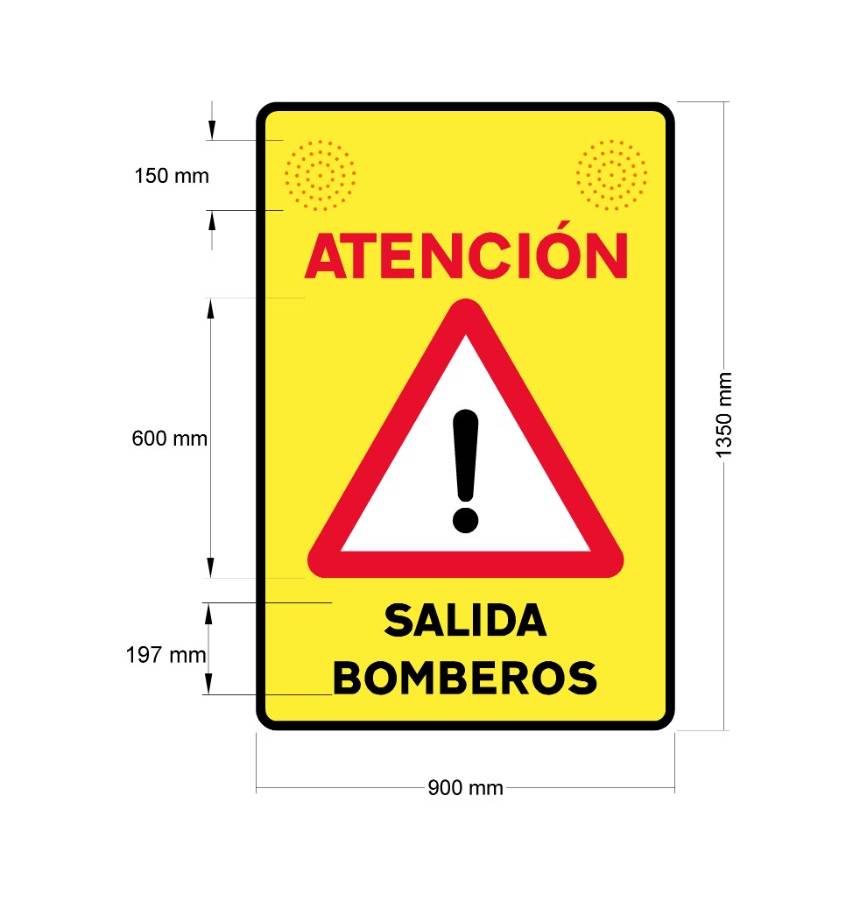

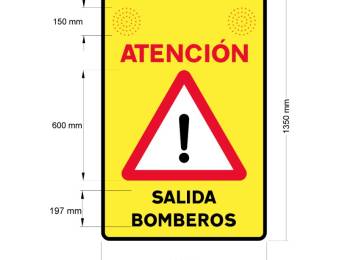

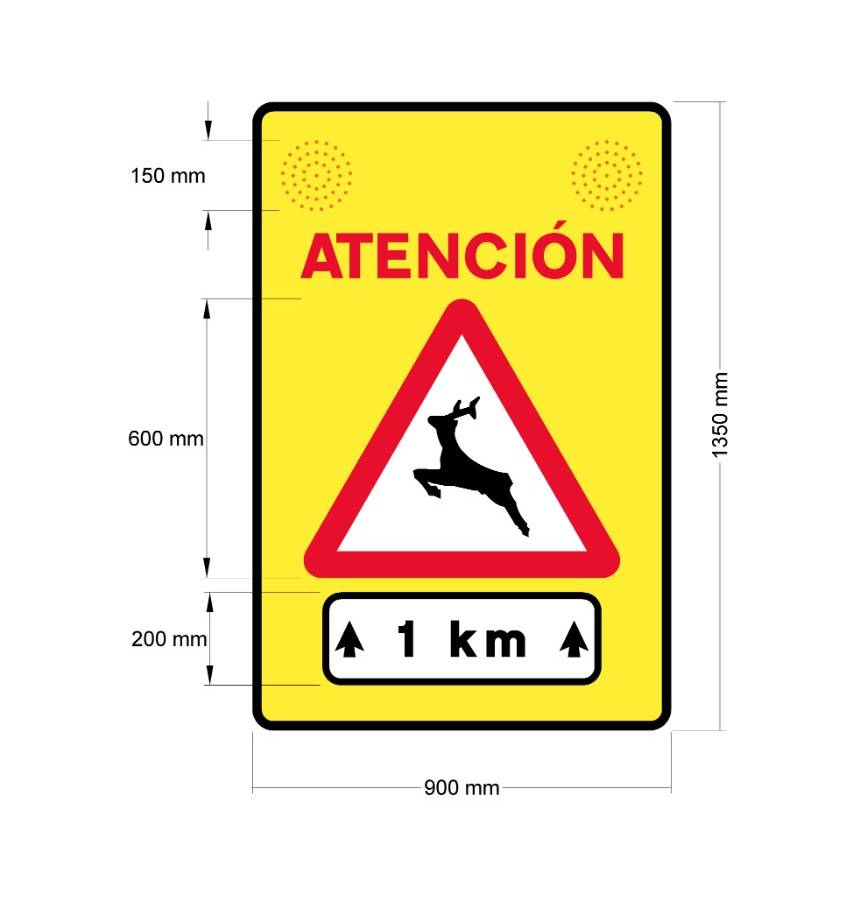

- 135x90 with two 48-LED spotlights, ø15cm
- 135x90 with four 48-LED spotlights, ø15cm
